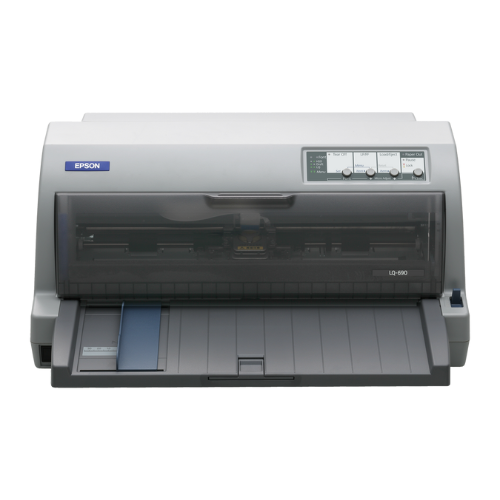

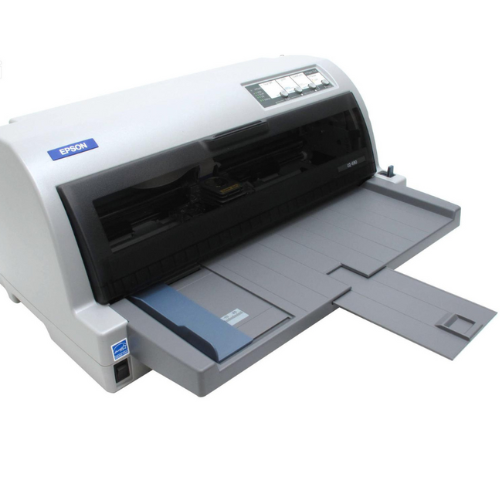

Epson – Eco Tank Printer – LQ-690 Description:

The Epson EcoTank LQ-690 is a high-performance, reliable dot matrix printer designed for businesses that require efficient, long-lasting printing solutions. It offers superior speed, durability, and cost-efficiency for printing invoices, receipts, reports, and multi-part forms.

Key Features:

• Fast Printing Speed: Prints up to 529 characters per second (cps), ideal for high-volume tasks.
• High-Quality Output: 24-pin technology ensures sharp and clear text with precise graphic capability.
• Compact Design: Space-saving design fits seamlessly into office environments.
• Long Ribbon Life: Equipped with a long-lasting ribbon cartridge, reducing the need for frequent replacements.
• Multi-Part Form Capability: Supports up to 1 original + 6 copies, making it ideal for carbon copy printing.
• Durable Print Head: Offers a print head life of up to 400 million strokes/wire, ensuring longevity.
• Versatile Paper Handling: Accommodates various paper types, including continuous paper, labels, envelopes, and single sheets.
• Energy Efficient: Low power consumption, adhering to energy-saving standards.

General Specifications:

• Print Technology: 24-pin dot matrix
• Number of Pins: 24
• Number of Columns: 106 (at 10 cpi)

Printing Performance:

• Print Speed:
• High-Speed Draft Mode: 529 cps (at 10 cpi)
• Draft Mode: 440 cps (at 10 cpi)
• Letter Quality Mode: 110 cps (at 10 cpi)
• Print Head Life: 400 million strokes/wire
• Ribbon Life: Up to 5 million characters

Paper Handling:

• Paper Types:
• Continuous paper
• Single sheets
•  Labels
•  Envelopes
• Roll paper (optional)
• Paper Thickness: 0.065 mm to 0.52 mm
• Multi-Part Forms: 1 original + 6 copies
• Paper Feed: Friction feed (front), push tractor (rear), optional pull tractor

Connectivity:

• Standard Interfaces:
• USB 2.0
• Parallel (IEEE 1284)
• Optional Interfaces:
• Network Interface (Ethernet)

Physical Dimensions:

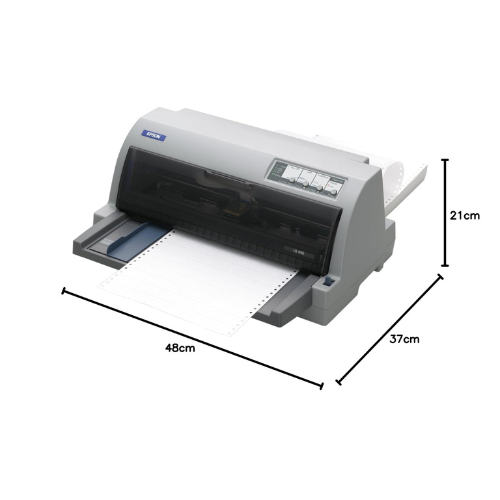

• Dimensions (WxDxH): 464 mm x 354 mm x 232 mm
• Weight: Approx. 7.2 kg

Electrical Specifications:

• Power Consumption:
• Operating: 49W
• Sleep Mode: 1.5W
• Voltage: 220-240V AC

Environmental Specifications:

• Operating Temperature: 5°C to 35°C
• Operating Humidity: 10% to 80% RH (non-condensing)

Compatibility:

• Supported Operating Systems: Windows (various versions)
• Emulations: Epson ESC/P2, IBM PPDS

Additional Feature:

1. Auto Platen Gap Adjustment: Automatically adjusts the gap between the print head and the paper for optimal print quality, even when printing on multi-part forms or thick paper.
2. Automatic Paper Thickness Detection: Detects the thickness of the paper being used to ensure consistent print quality across different media types.
3. Long Mean Time Between Failures (MTBF): Designed with a high MTBF of 20,000 Power-On Hours (POH), ensuring durability and reliability in demanding environments.
4. Bi-Directional Printing: Enhances speed by printing in both directions, ideal for reducing overall printing time.
5. Ribbon Cartridge Design: Easy-to-install ribbon cartridge with high capacity ensures minimal downtime and lower maintenance costs.
6. Low Noise Operation: Operates quietly with noise levels as low as 49 dB, making it suitable for office environments.
7. Energy-Efficient Performance: Compliant with energy-saving standards, reducing electricity consumption without compromising performance.
8.  Wide Compatibility: Offers compatibility with various software and operating systems, including legacy systems, ensuring seamless integration.

Benefits:

• High-Speed Printing: Boosts productivity with printing speeds of up to 529 cps, ensuring fast processing of high-volume tasks such as invoices, reports, and forms.

• Cost-Effective Operation:

  • Long Ribbon Life: Reduces frequent replacements, lowering operational costs.
  • Energy Efficient: Consumes minimal power during operation and sleep mode, saving on electricity bills.

• Versatility in Media Handling:

  • Supports multi-part forms (1 original + 6 copies), labels, continuous paper, and single sheets.
  • Auto paper thickness detection ensures consistent quality across different paper types.

• Reliable Performance:

  • Durable print head with a life span of 400 million strokes/wire ensures longevity.
  • High Mean Time Between Failures (MTBF) of 20,000 Power-On Hours (POH) ensures dependable operation for years.
• Space-Saving Design: Compact and lightweight, the printer fits easily into tight office spaces without compromising performance.

• Ease of Use:

  • Simple ribbon cartridge replacement reduces downtime.
  • Auto platen gap adjustment ensures hassle-free handling of various paper types.

• Wide Compatibility:

  • Works with a range of operating systems and legacy software, ensuring seamless integration into existing workflows.
  • Multiple connectivity options (USB, Parallel, and optional Ethernet) make it easy to connect in different environments.
• Quiet Operation: Produces minimal noise during operation (49 dB), making it suitable for noise-sensitive office environments.

The Epson EcoTank LQ-690 is a dependable and efficient dot matrix printer designed to meet the demands of businesses requiring high-speed, cost-effective, and versatile printing solutions. With its fast print speeds, long ribbon life, and multi-part form capability, it is ideal for industries like logistics, finance, and healthcare. Its compact design, low energy consumption, and user-friendly features make it a practical choice for busy work environments.
