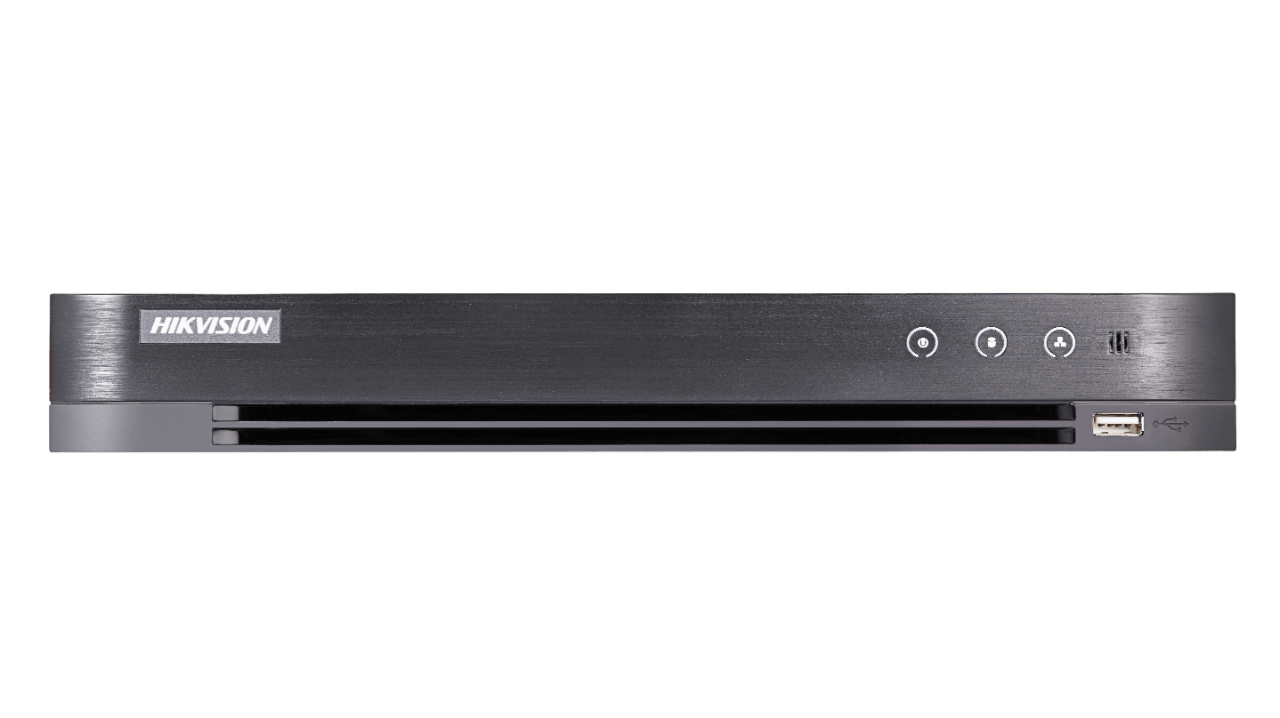

Hikvision DS-7204HUHI-K1 DVR:
Brand: Hikvision
Model number: DS-7204HUHI-K1
HARD DISK DRIVER
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:
Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) ,
Video Bit Rat: e32 Kbps to 10 Mbps
Dual Stream: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps
IP Video Input: 4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input: PAL/NTSC
Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback: 4-ch
HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
VGA/HDMI Output: 1-ch, ,2K (2560 × 1440)/60Hz, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
