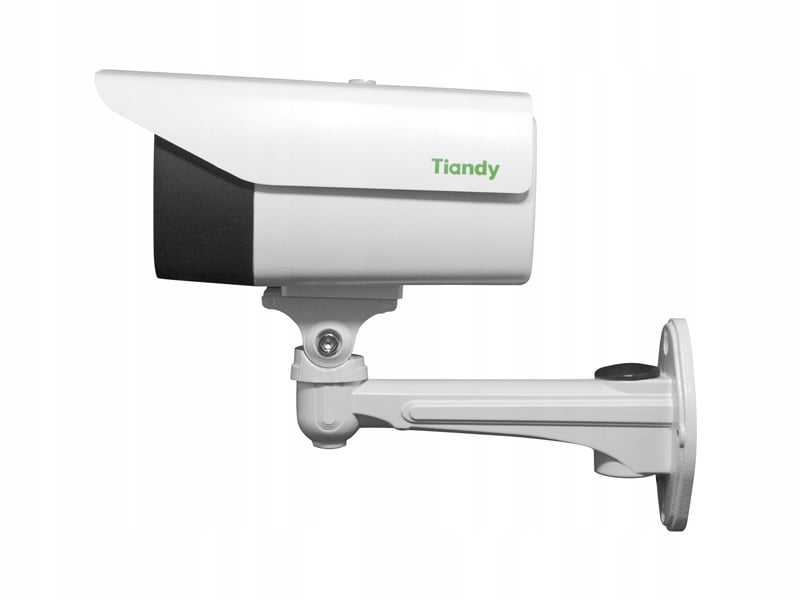

Security Camera TC-NC294 2MP IR Bullet Camera
| Camera: | Security |
| Brand: | Tiandy |
| Image Sensor: | 1/2.7″ CMOS |
| Core Processor: | ARM9 Architecture |
| Operating System: | Embedded Linux |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.5 Lux @(F1.2, AGC ON) B/W: 0.25Lux @(F1.2, AGC ON); 0 Lux with IR |
| Shutter Time: | 1s to 1/100,000s |
| Lens: | 4mm, Angle of View: 89.8° |
| Lens Mount: | φ12 |
| Auto Iris: | N/A |
| Day& Night: | IR Cut Filter with Auto Switch |
| WDR: | 100 dB |
| DNR: | 3D DNR |
| S/N Ratio: | >60dB |
| Compression Standard | |
| Video Compression: | H.264/MJPEG |
| Video Compression: | H.264/MJPEG |
| Video Bit Rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711A/G.711U/ADPCM |
| Image | |
| Audio Bit Rate: | G711 8KHz, 64kbps ADPCM 8KHz, 32kbps |
| Max. Image Resolution: | 1920×1080 |
| Frame Rate: | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 720) 60Hz: 30fps (1920 × 1080), 30fps (1280 × 720) |
| Triple Stream: | Mainstream:1080P(1920*1080) Dimensions Substream:D1(704*576) 3rd stream:CIF(352*288) |
| Image Settings: | Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser |
| HLC: | Y |
| Smart Defog: | Y |
| Corridor Format: | Y, Available for 720P and Above |
| EIS: | Y |
| ROI: | 4 Zones |
| Privacy Mask: | 4 Zones |
| Picture Overlay: | 200 × 200, BMP 24bit, Zone Configurable |
| OSD: | Size:16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Letters, Week, Date, Time, Total 5 Regions |
| Network | |
| Browser: | CHROME V45 or lower, IE, FIREFOX |
| Network Storage: | FTP |
| NTP: | Y |
| ANR: | Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR) |
| Video Analytics: | Tripwire/Perimeter |
| Alarm Trigger: | Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm |
| Protocols: | IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP /TCP/UDP/DHCP/PPPoE/HTTPS/ARP/RTP/QoS/MULITCAST/ICMP/IGMP |
| User Permission: | 4 Level/8 Users |
| Remote Connection: | 3 Users Access at the Same Time |
| NTP: | Y |
| System Compatibility: | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input: | N/A |
| Audio Output: | N/A |
| Communication Interface: | 1-ch RJ45 10M / 100M Ethernet Interface |
| Alarm Input: | N/A |
| Alarm Output: | N/A |
| Video Output: | N/A |
| General | |
| Language: | English,Simplified Chinese |
| Operating Conditions: | -35℃～60℃(IR OFF) /-35℃～40℃(IR ON), 0～95% RHG |
| Power Supply: | DC 12V±10%,PoE (802.3af) |
| Power Consumption: | Max. 5W(IR OFF) (ICR Instant Switch 8.5W) Max. 7W(IR ON) |
| Circuit Protection: | TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V) |
| Impact Protection: | IP67 |
| IR Range: | 20m |
| IR LEDs: | 1pcs Array |
| Dimensions: | 178mm×100mm×94mm |
| Weight: | 0.5KG (IP Camera Only); 0.7KG (with Packing Box) |
